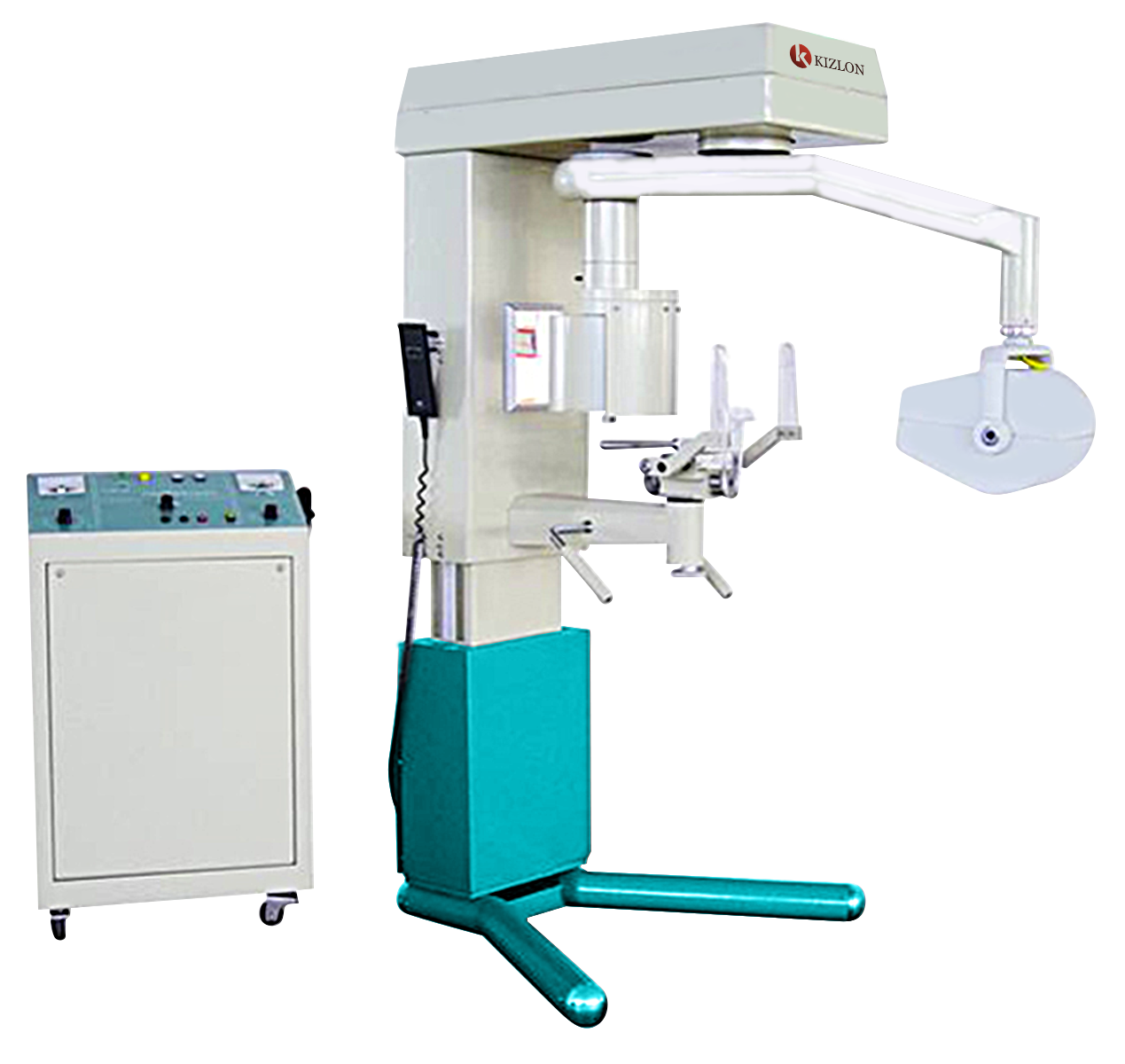

Dental OPG X-ray KDX-B100 is a panoramic extra-oral imaging modality unit designed on the principle of curvature tomography. System utilizes oil immersed and self-cooling technology for longer sustenance. Micro-focus technology ensures clear image and accurate diagnosis.
| Tube Voltage | 90 kVp |
|---|---|
| Tube Current | 10 mA |
| Exposure Time | 16 s |
| Tube Focus | 0.8 mm |
| Film Size | 150 × 300 mm |
| Charger Input | AC : 220 V ± 10 %, 50 Hz ,1.8 kVA |
| SSD (Source Skin Distance) | 1120 mm |
| Weight | 228 kgs |
Used in dental clinics for dental X-ray imaging to reveal impacted wisdom teeth, maxillary arch, mandible, lower jaw or jawbone, maxillary sinuses, nasal sinuses and the whole 32 teeth area
