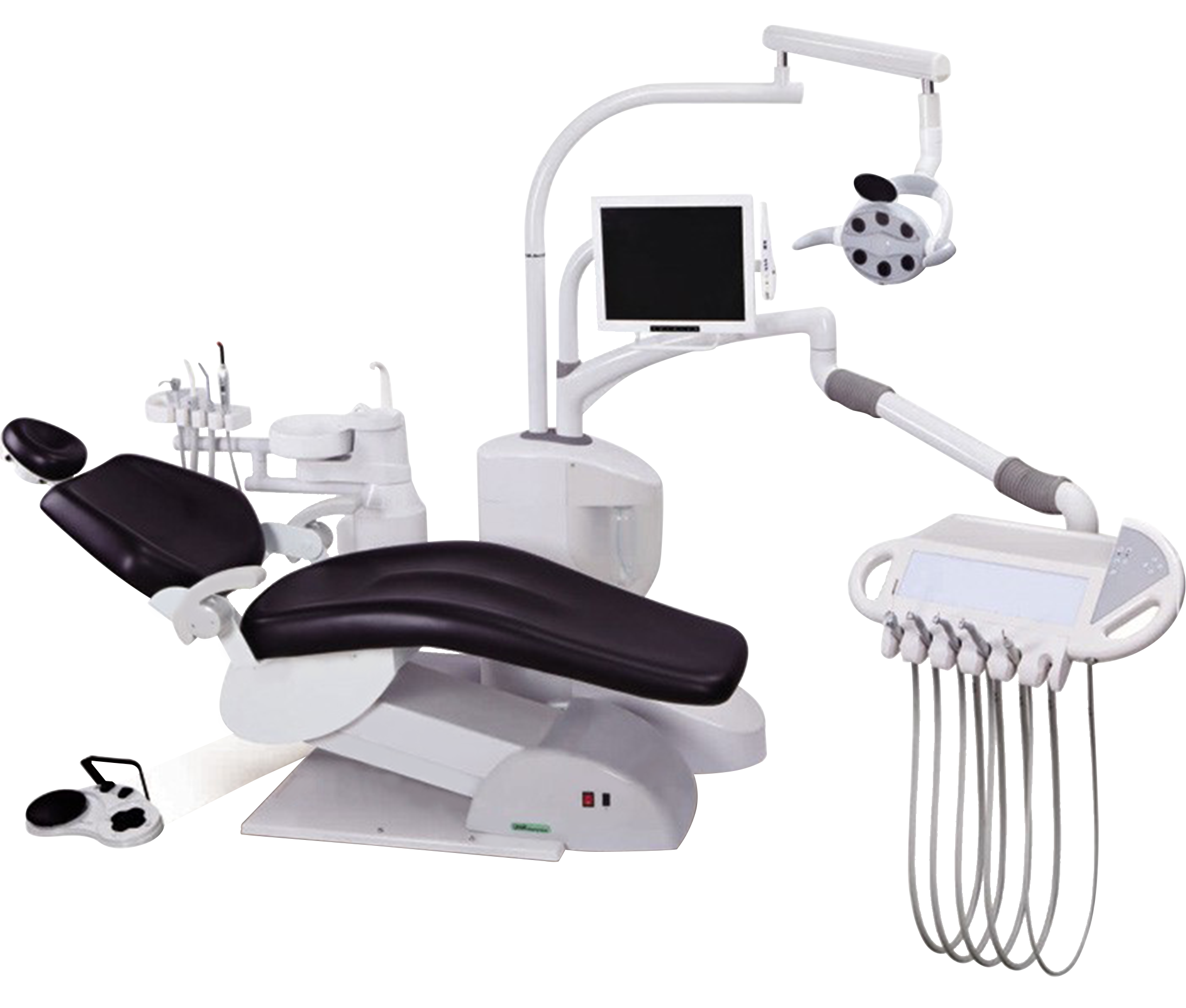

Dental Chair Unit KDU-A101

Dental Chair Unit KDU-A101 equipped with high quality chair and floor-type side box characterized by remote controller facilitate automatic control. Incorporates LED lamp, X-ray film viewer, low mounted instrument tray, suction pump system. Large seat rest designed based on human body feature give comfort to patient during operation.

Specifications :

Chair size	1800 × 1000 × 2000 mm
DC Motor	24 V / ≤ 3.8 A
Operation Light	12 V ; 50 VA (AC) 10 V ; 50 VA
Input Power	1100 VA
Water Supply Thermostat	230 V ; 50/60 Hz (AC)
X-Ray Film Viewer	12 VA
Instrument Tray Capacity	1.5 Kg
Power Supply	230 V ; 50/60 Hz (AC)
Weight	250 Kgs

Features :

•   Electric control system
•   Single chair motor and foot pedal
•   Central suction system without vacuum pump
•   Three hand piece tube
•   Automated hot water supply
•   Two set built-in water purifier and dentist stool
•   One set operating light and monitor arm

APPLICATIONS :

Used in dental clinic for dental examinations and operations.

OPTIONAL_FEATURES :

Built-in curing light and scaler
Monitor and camera
Memory program system
Suction system : eject saliva and water
Dental air compressor without oil and with air dryer
Six way syringe
Dental hand piece
Medical suction machine
